6ftx12ft Galvanized Chain LinkFenceTemporary Fence Panel With Base Stand
Material: Low carbon steel wire, Galvanized iron wire, Stainless steel wire, and Aluminium alloy wire.
Surface treatment: Electric galvanized, Hot dipped galvanized, PVC coated, PE coated
Weaving: Chain link weaving.
Specifications (We received customized)
| Wire thickness | 1.0-6.0mm |
| Mesh opening | 20x20mm,50x50mm,60x60mm,80x80mm,100x100mm etc |
| Mesh height | 0.5m-6m |
| Mesh length | 4m-50m |
| Post & rail diameter | 32mm, 42mm,50mm,60mm,76mm,89mm etc |
| Post & rail thickness | 1.5mm,2.0mm,3.0mm,4.0mm,5.0mm etc |
Chain link fence post type: Round post, Angle post, square post, etc.
Chain link fence edge type: Knuckly type, barbed type (twist type)
Features & Appplication
- Commercial grounds (Corporation, hotel, supermarket);
- Private grounds (Courtyard, Villadom);
- Public grounds (Park, zoo, train or bus station, lawn);
- Road and transit (Highway, railway or road city transit);
- Used as fencing, decoration or protection for various facilities in industry, agriculture, infrastructure, transport, etc.
Chain Link Mesh Fence Manufacture Processing
Chain Link Mesh Fence from 3 feet the 12 feet high, the highest being generally used for surround sports areas where it is important to prevent balls escaping. Lower chain link fences for use around homes can be fitted with privacy slats.
Thickness of wire
The thickness of the wire for chain link fences can be quite confusing. Manufacturers will usually refer to the
thickness of the wire being a certain 'gauge', for example 11 or 12 gauge. Oddly, the higher the number of the
gauge, the thinner the wire. Thus, 11 gauge corresponds to a thickness of 0.120 inches, and a 12 gauge
corresponds to a thickness of only 0.105 inches. Although gauges can vary between 6 and 14, the most
common gauges for chain link fencing are 11, 11.5 and 12 gauge.
Finishes
Chain link fence is normally made from zinc galvanized steel wire, with the galvanizing being applied either
before or after the weaving of the wire. It is preferable for the galvanizing to the applied before weaving, to
ensure that all surfaces are fully galvanized. Of course you can also select the PVC/PE coated chain link fence.
| Mesh | Guage(BWG) | Weight(kg/m2) | Width(m) | Length(m) |
| 1/2'' | 14 | 4.4 | 0.5-5.0 | 1.0-50 |
| 3/4'' | 12 | 6.0 | 0.5-5.0 | 1.0-50 |
| 3/4'' | 14 | 3.3 | 0.5-5.0 | 1.0-50 |
| 3/4'' | 16 | 1.9 | 0.5-5.0 | 1.0-50 |
| 1'' | 12 | 4.0 | 0.5-5.0 | 1.0-50 |
| 1'' | 14 | 2.4 | 0.5-5.0 | 1.0-50 |
| 1'' | 16 | 1.4 | 0.5-5.0 | 1.0-50 |
| 5/4'' | 12 | 3.2 | 0.5-5.0 | 1.0-50 |
| 5/4'' | 14 | 1.92 | 0.5-5.0 | 1.0-50 |
| 3/2'' | 10 | 4.0 | 0.5-5.0 | 1.0-50 |
| 3/2'' | 12 | 2.7 | 0.5-5.0 | 1.0-50 |
| 3/2'' | 14 | 1.6 | 0.5-5.0 | 1.0-50 |
| 2'' | 8 | 4.16 | 0.5-5.0 | 1.0-50 |
| 2'' | 10 | 3.0 | 0.5-5.0 | 1.0-50 |
| 2'' | 11 | 2.5 | 0.5-5.0 | 1.0-50 |
| 2'' | 12 | 2.0 | 0.5-5.0 | 1.0-50 |
| 2'' | 9 | 3.2 | 0.5-5.0 | 1.0-50 |
Chain Link mesh fence surface treatment
| Surface Treatment | Min. | Max. |
| Ccmmon galvanization | 40g/m2 | 70g/m2 |
| Light galvanization | 20g/m2 | 35g/m2 |
| PVC Coated | 400 microns | 600 micron |

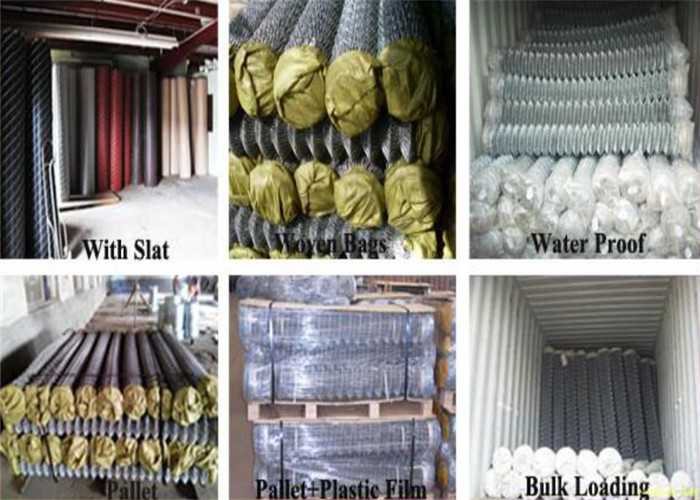

Chain link mesh fence packing and delivery
Product Tags:
|
|
6ftx12ft Galvanized Chain Link Mesh Fence Panel Temporary With Base Stand Images
|
