Home > Chain Link Mesh Fence >

48" X 100" Chain Link Mesh Fence Galvanized Silver Coated

AN PING XI RUN METAL MESH CO.,LTD
Contact Now

48" X 100" Chain Link Mesh Fence Galvanized Silver Coated

  • 1
  • 2

Brand Name : XR

Certification : SGS ISO

Place of Origin : CHINA

MOQ : 1 Roll

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000 m² Per Week

Delivery Time : 7 Days After Payment

Packaging Details : Plastic Woven Bag

Product Name : 48" x 100' Galvanized Chain-Link Fence

Wire Dia : 9 Ga Or 11.5 Ga

Material : Galvanized

Mesh Shape : Diamond

Roll Size : 48''x100''

Including : Chain Link Hardware

Contact Now

48" x 100' Galvanized Chain-Link Fence Project Material List With Chain Link Hardware





Galvanized Chain Link Fence Description



Chain Link Fence Made of galvanized steel for durability. Galvanized before weaving to eliminate burrs and sharp surface.Roll-out design for easy installation. Top and bottom of fabric ends



Galvanized Wire Mesh Chain Link Fence Paramaters



Product name Chain link fence
Material Galvanized steel wire, PVC Coated wire
Wire diameter 2.5mm, 9G, 8G, 3.15mm, 3.6mm, 4mm etc
Diamond hole size 2''x2'', 60x60mm, 3''x3'' etc
Fence height 4ft, 5ft, 6ft, 2m, 8ft, 3m etc
Other accessories Fence post,
top rail,
High tensile wire;
Fence caps;
Barbed wire;
Tension bar;
etc



Galvanized Wire Mesh Chain Link Fence Data Techinique



Chain link fence System:
Chain-Link Fabric
Type
Specification
Gauge
Mesh
Heights
Selvage
Galvanized before Weaving
Low carbon steel wire
9 or 11
2"
3', 42", 4', 5', 6', 7', 8', 10' and 12' or as your request
Knuckled and Knuckled, Barb and Knuckled 6', or Barb and Barb
Framework
Top Rail
3' to 5' High

6' to 12' High
32mm O.D.

42mm O.D.
Line Posts
3' to 5' High

6' to 12' High
48mm O.D.

60mm O.D.
Terminal Posts
3' to 12' High

For Heavy Gates
60mm O.D.

100mm O.D.
Gate
Fabric
Frame
Same Mesh and Gauge as Chain Link Selected
Same as Top Rail Selected
Fittings
Steel Fittings
Tie Wires
Hot Dip Galvanized Or PVC coated available
galvanized
Caps, Eye Tops,
Rail Ends
Malleable, Cast Iron Steel, Pressed
Material Composition
Colors
Polyethylene Thermoplastic

Green, Black, Brown, Gray, Redwood, Blue, Desert Sand



48" X 100" Chain Link Mesh Fence Galvanized Silver Coated



Chain Link Fence Features





  • Galvanized before weaving (GBW) to aid in eliminating burrs and sharp surfaces
  • Includes tension wire used for increased fence stabilization along the bottom of your Chain-Link fence project.
  • Fast setting concrete for termination posts is special blend of cements, sand, and gravel designed to set hard in approximately 20-40 minutes



Chain Link Fence Benifits


Bright colors, smooth mesh surface, strong tension, not easy to be deformed by external impact.Easy construction and installation, strong flexibility (the shape and size can be adjusted at any time according to site requirements)



Chain Link Fence Standard Packing



1. Fittings in wooden case
2. Framework and gate in pallets, out wrap with plastic film to prevent moist
3. Rolls chain link fence wrap woven bag at top and bottom
4. As your kindly special requirement , to guarantee goods are good arrive to your place

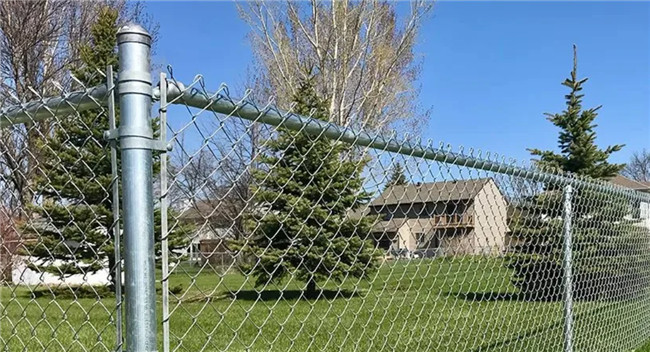

Chain Link Fence With Top Rail



48" X 100" Chain Link Mesh Fence Galvanized Silver Coated



Chain Link Fence Without Top Rail



48" X 100" Chain Link Mesh Fence Galvanized Silver Coated
